DICONAL® PV - Module clamps MMK + MEK
MMK + MEK Application
Module fastening if wanted with grounding pin
Dowload Dokuments:
- Data sheet MMK / MEK
- Data sheet collection DICONAL® System complete (6 MB) (German)
- Download Page (Flyer, Data sheets, Data collection sheet, Measurement sheet, GTC (German))
- DIBt® certification Z-14.4-827 (German)
- DIBt® certification Z-14.4-827 English
MMK + MEK Advantages
- Simple. The clamps can be inserted with one hand in a single movement, without the need for tools.
- Fast. Pre-assembled and installed in just three steps.
- Secure. The clamps are immediately secured against falling out. Once secured, the clamps provide secure hold for modules.
- Flexible. Can be easily moved into position after insertion into the profile.
- Suitable for all DICONAL® system profiles.
- Modules or clamps can be easily replaced after installation.
- Can be inserted directly into any position in the profile.
- in any system profiles P-40, P-80, P-120, P-30, P-mini and FA-PV (Kalzip®)
- MMK + MEK with grounding pin available
Easy
Insertion - The module clamp is inserted into the mounting profile at any desired location. The module clamp is secured against falling out and can be easily moved within the support profile.
Fast
Positioning - Slide the module clamp onto the first module and position it. The anodized coating allows the clamp to slide easily. The second module is simply pushed against the clamp. A spring holds the clamp profile above the two modules.
Fixed
Fixing - Screw the clamp to securely and firmly fix the modules. The mounting mechanism allows any clamp, and thus any module, to be removed or replaced at any time, even later.
Technical Data MMK + MEK
Module middle and end clamps for various module heights on stock - also in anodized black.
Material socket + clamp: ENAW 6063
Material screw: V2A
tightening torque: 10Nm
Terminal with grounding pin
The terminal with grounding pin is a module terminal with a spike that pierces the anodized coating of the modules to create electrical contact.
Mounting tools
Hexagon allan-key 6mm
Mounting
DICONAL® - System clamps MMK and MEK offer perfect handling properties - rapid,safe, easy and flexibly installed with 3 movements. MMK and MEK clamps fit to every system - profile.
- Pre-mounted DICONAL® clamps MMK and MEK are positioned in the profile with an L-shaped movement. First it is inserted down into the profile and then pushed forward to the stop position.
Turning screw up to the marking line secures clamp against
falling out. - Turn the screw 2-3 times (up to the marking line). By doing so, the DICONAL® - system clamp is secured from falling out - its position may still be varied to the left or right towards the solar panel. A spring integrated in the
DICONAL® - system clamp helps positioning the modules by retaining the middle clamp sufficiently upright. - The solar panels are clamped in a last step. To do so turn the screw of the clamp with 10Nm. DICONAL® - system clamps MMK and MEK may be fitted immediately and at any position of the P-40, P-80, P-120, P-30, P-mini and FA-PV (Kalzip®)
system profiles !
100% System - compatible
1 Module clamps for all applications. DICONAL® PV module clamps provide the foundation for the entire DICONAL® mounting system. Whether for pitched roofs, flat roofs, open-air installations, or custom solutions.
Module Repair + Replacement
DICONAL® PV - Module clamps can also be removed quickly and easily. This makes replacing individual defective modules a breeze.

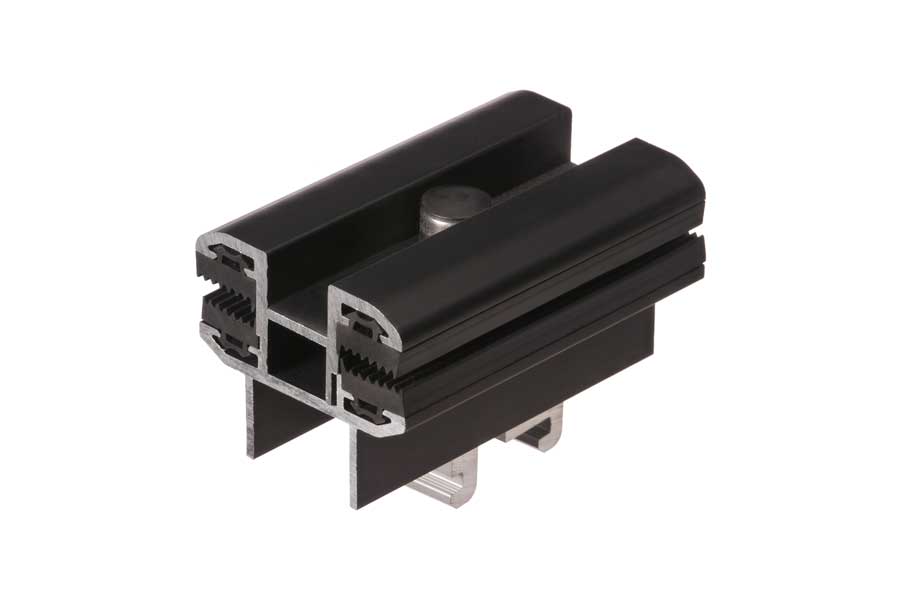

PV-Laminate-Module clamps
Laminate clamps - For laminate modules, there is a special rubber lip clamp available in two versions: end and center clamp. The laminate module clamps are black anodized.
