Hanger bolts S-10 / S-08 for Corrugated- and trapezoidal sheet PV-Mounting

Hanger bolt S-10 / S-08 Application
on Corrugated- or trapezoidal sheet roofs

Dowload Dokuments:

• Data sheet S-10 / S-08 (German)
• Data sheet collection DICONAL^® System complete (6 MB) (German)
• Download Page (Flyer, Data sheets, Data collection sheet, Measurement sheet, GTC (German))
• DIBt^® certification Z-14.4-827 (German)
• DIBt^® certification Z-14.4-827 English

Hanger bolt S-10 / S-08 Application
on Corrugated- or trapezoidal sheet roofs

Advantages

• Enable direct construction of a profile level
• For timber and steel purlins
• Clamp connectors provide a connection to the DICONAL^® system profiles
• All hanger bolts include EPDM seals
• KV-40 profile connectors pre-assembled


Hanger bolt bridge
Advantages
Inconsistent module and trapezoidal sheet dimensions can be bridged/adjusted
Better load distribution

Technical Data

S-10 Wood Hanger Bolt:

Hanger bolts are available in different lengths for different clamping ranges 30 - 165 mm

All hanger bolts pre-assembled with EPDM gasket and KV-40.

Hanger bolt material: 1.4301 / A2. Clamp connector material: ENAW 6063.

DIBt^® - approval hanger bolt: Z-14.4-602
DIBt^® - approval cross connector: Z-14.4-827

Installation tool for S-10 wood hanger bolt
Drill / 13.00mm drill bit / 7.0mm wood drill bit / 7mm socket wrench / 15mm wrench

Installation of S-10 wood hanger bolt

1. Determine the rafter alignment and mark it with a chalk line.
2. Pre-drill the roof cladding with a diameter of 13.00mm.
3. Pre-drill the wood with a diameter of 7.00mm.
4. Screw the hanger bolt into the rafter at least 70mm deep.
5. Press the seal onto the roof surface by tightening the bottom nut until a slight bulge forms on the seal.


Accessory Hanger bolt bridge

• Art.Nr.: S-Brücke-333 / Hanger bolt bridge für Bead spacing 333 mm

Icluded in the set:

• 4 pieces / Washers M10 / DIN440 / 1.4301
• 1 Stück / cross connector KV-40
• 1 Stück / Profil "Mounting bridge"

Material Connector: ENAW 6063
DIBt^® - approval cross connector: Z-14.4-827
Material profile mounting bridge: ENAW 6063
Wx: 1,92 cm³ / lx:2,43 cm⁴
Wy: 2,11 cm³ / ly: 4,23 cm⁴

Technical Data

S-08 Hanger Bolt Metal UK: Recommended screw length: trapezoidal profile height / sandwich height + 20mm

Hanger bolts metal UK are available in different lengths for different clamping ranges 15 - 180 mm

All hanger bolts pre-assembled with EPDM gasket and KV-40.

Hanger bolt material: 1.4301 / A2. Clamp connector material: ENAW 6063.

DIBt^® - approval hanger bolt: Z-14.4-602
DIBt^® - approval cross connector: Z-14.4-827

Installation tool for S-08 metal hanger bolt
Drill / 10.00mm drill bit / 6.8 / 7.0 / 7.2 / 7.4mm metal drill bit / 5mm hexagon socket bit / 15mm wrench

Installation of S-08 metal hanger bolt

1. Determine the purlin alignment and mark it with a chalk line.
2. Pre-drill the roof cladding to a diameter of 10.00 mm.
3. Pre-drill the metal purlins depending on the material thickness.
   Steel thickness 1.5-5.0 mm = pre-drill with a diameter of 6.8 mm.
   Steel thickness 6.0 mm = pre-drill with a diameter of 7.0 mm.
   Steel thickness 8.0 mm = pre-drill with a diameter of 7.2 mm.
   Steel thickness > 10 mm = pre-drill with a diameter of 7.4 mm.
4. Screw the hanger bolt into the purlins until the seal rests on the profiled sheet.
5. For structural reasons, the clamp connector should point towards the ridge. (see graphic)

Accessory Hanger bolt bridge

Hanger bolt bridge für Bead spacing 333 mm

Icluded in the set:

• 4 pieces / Washers M10 / DIN440 / 1.4301
• 1 Stück / cross connector KV-40
• 1 Stück / Profil "Mounting bridge"

Material Connector: ENAW 6063
DIBt^® - approval cross connector: Z-14.4-827
Material profile mounting bridge: ENAW 6063
Wx: 1,92 cm³ / lx:2,43 cm⁴
Wy: 2,11 cm³ / ly: 4,23 cm⁴

System variants

The S-10 hanger bolts can also be used to attach elevations.

Hanger bolts S-10 / S-08

Insert

DICONAL^® Hanger bolts are anchored in the substructure.

Compatible

DICONAL^® Hanger bolts are supplied with pre-assembled profile holders.

Elevation

DICONAL^® Hanger bolts can also be used for mounting elevations.

Corrugated asbestos cement

DICONAL^® Hanger bolts offer a possibility to install PV systems on corrugated asbestos cement roofs.

Trapezoidal corrugated sheet alternatives

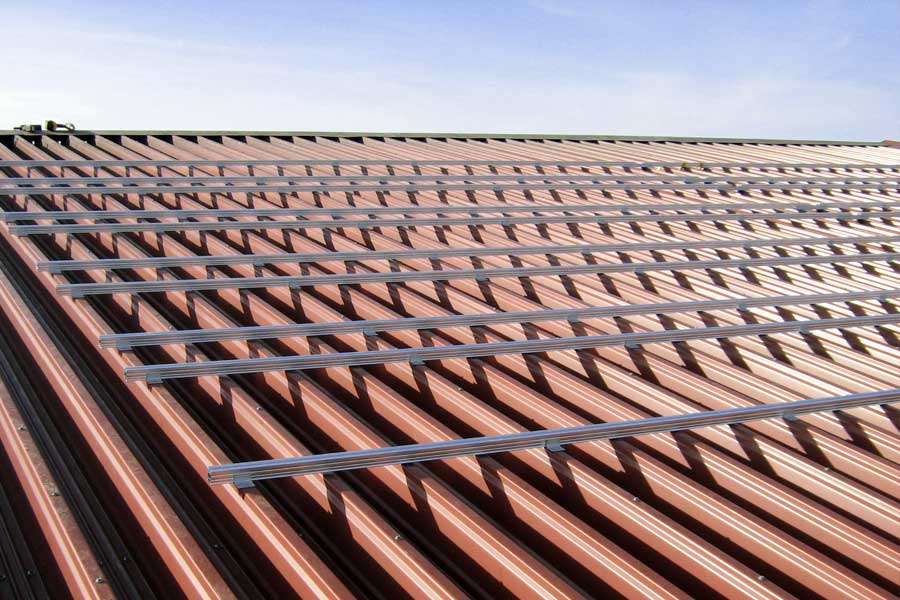

Sliding support GH

DICONAL^® The GH sliding bracket system may offer an alternative mounting solution.

Short track system P-30

DICONAL^® Short track system P-30.

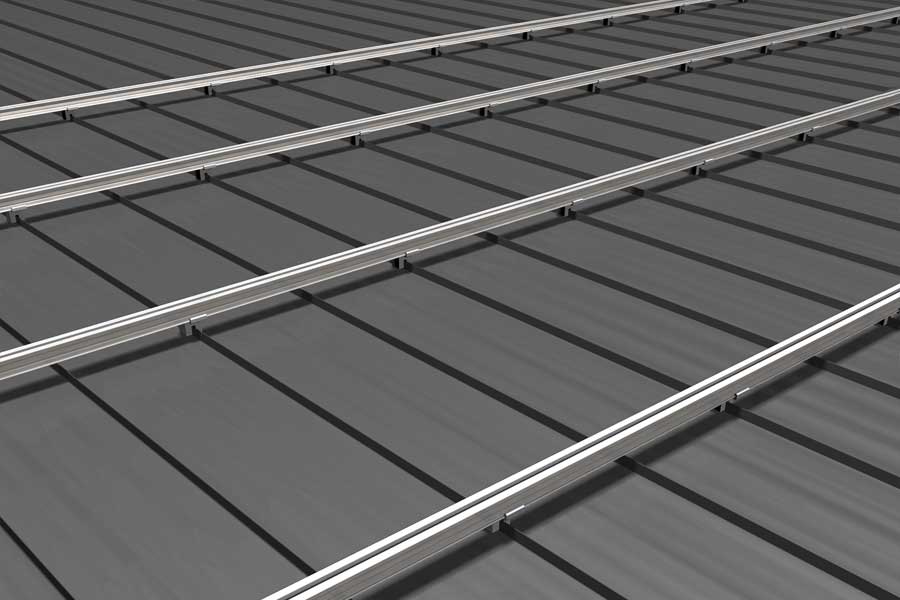

Seam roof

Seam clamps for seam roofs and premounted connectors for the DICONAL^® PV mounting system.
